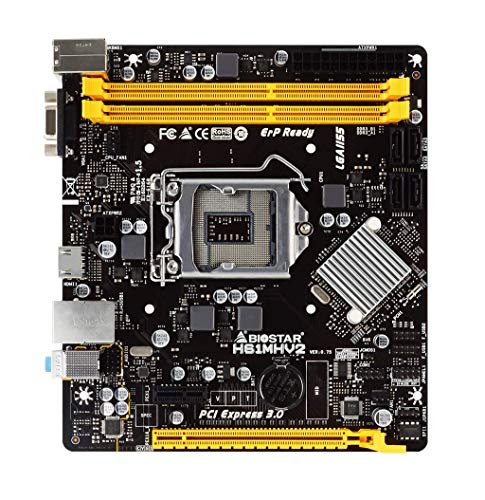

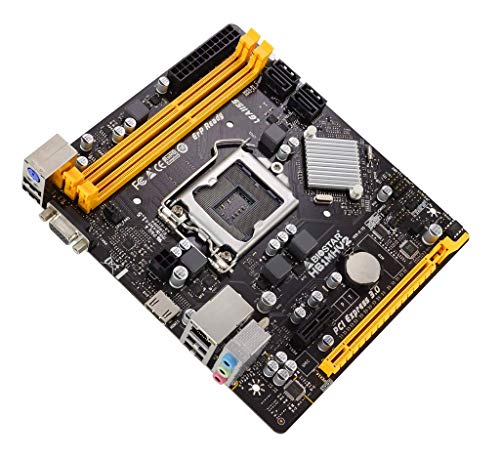

BIOSTAR H61MHV2 Ver. 7.0 Motherboard 2nd & 3rd Generation Core i7 / i5 / i3 / Pentium/Celeron Processors LGA 1155 CPU…

Intel H61 chipset The Intel H61 Express Chipset is a single chipset design to support the new 1155 socket Intel 3rd/2nd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron processors. It provides improved performance by utilizing serial point-to-point links, which allows increased bandwidth and stability, Intel LGA 1155 3rd Generation Intel Core Processor support, Intel 3rd generation processor “Ivy Bridge” is the codename for Intel’s 22nm of the Sandy Bridge microarchitecture. The first to use tri-gate(“3D”) transistors, it is also backwards-compatible with the Sandy Bridge platform requiring a BIOS/firmware update, Provides high quality sound with minimal loss of audio fidelity, The HDMI 3D Visual provides a level of interoperability for devices designed to deliver 3D content over the HDMI connection. The latest HDMI Specification adds key enhancements to support the market requirements for bringing broadcast 3D content into the home featuring key enhancements for 3D applications including the addition of mandatory 3D formats for broadcast content. Direct3D 11 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer. PCIe Gen 3.0 PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces,It supports 2 or 4 DIMM Slots DDR3 memory that features data transfer rates of DDR3 1600/1333. The processor support 2 memory channels and setting the memory multiplier, allows selection of the channel speed. These clearly uplift the band width and boost the overall system performance.

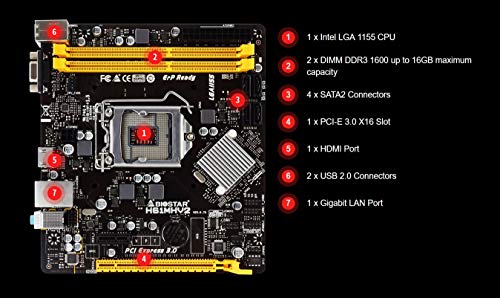

1 x Intel LGA 1155 CPU, 2 x DIMM DDR3 1600 up to 16GB maximum capacity, 4 x SATA2 Connectors, 1 x PCI-E 3.0 X16 Slot, 1 x HDMI Port, 2 x USB 2.0 Connectors, 1 x Gigabit LAN Port
CPU SUPPORT: Intel Core i7 LGA 1155 Processor, Intel Core i5 LGA 1155 Processor, Intel Core i3 LGA 1155 Processor, Intel Pentium LGA 1155 Processor, Intel Celeron LGA 1155 Processor, Please refer to www.biostar.com.tw for CPU support list.
MEMORY: Support Dual Channel DDR3 1600/ 1333 /1066 MHz 2 x DDR3 DIMM Memory Slots, Max. Supports up to 16GB Memory
Expansion Slot: 1 x PCI-E 3.0 x16 Slot (supported by Core i5 -3xxx / Core i7 3xxx CPU), 1 x PCI-E 2.0 x1 Slot
REAR I/O: 1 x PS/2 Keyboard Port 4 x USB 2.0 Ports, 1 x HDMI Port, 1 x VGA Port, 1 x LAN Port, 3 x Audio Jacks
INTERNAL I/O: 1 x Chassis Speaker Connector, 1 x Clear CMOS header, 1 x Power Connector (24pin), 1 x Power Connector (4pin), 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports), 4 x SATA II 3Gb/s Connectors, 1 x Front Audio Header 1 x Front Panel Header, 1 x CPU Fan Connector, 1 x System Fan Connector, 1 x COM Port Header
DIMENSION: Micro ATX Form Factor Dimension: 17cm x 19.1cm ( W x L )
ACCESSORIES: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide
Warranty: 3-Year Manufacturer Warranty
