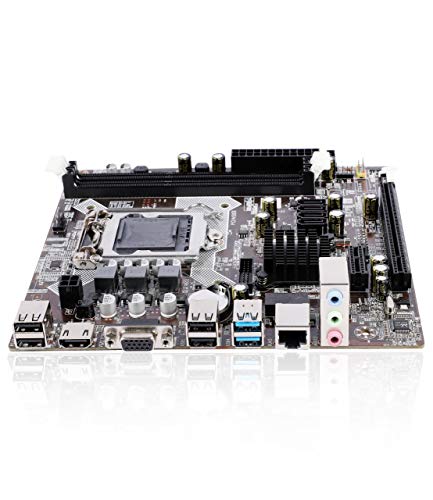

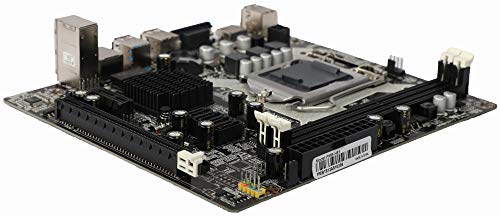

PowerX PMB H81 LGA1150 Socket Support Motherboard

10/100 M LAN: Provide more stable and faster network transmission environment, the transmission speed of up to 100Mb/s to better meet the application requirements of high data throughout. High-speed 10x USB 2.0 / 3.0 Ports (4 Expansion) Provide data transfer rates of up to 480 Mbps, hot-swappable, back ward compatible with standard USB1.1, easy to connect various USB interface device. 5 Way Optimization one click overclock and cooling. done! with dedicated base clock generator onboard specifically designed for the intel 2nd and 3rd generation CPU, this motherbaord is equipped with superb ability to reach its performance tp the max.

Brand: PowerX, Model: PMB – H81, CPU: Supports LGA1150 Socket i3/i5/i7 series CPU, Chipset: Intel H81 Chipset, Supports GMAX 4500 Graphics, Memory: 2*240-pin DDR III SDRAM Slots, Memory upto 16GB, Supports dual-channel DDRIII 1066MHz/1333/1600 MHz Memory EFI BIOS
I/O Interface: 1 x HDMI, 1 x VGA, 2 x USB 3.0, 4 x USB 2.0, compatible with USB 1.11, 1 x RJ45 Port, 1 x 3 in 1 Audio Port( Line in, Line out, Mic in)
Onboard Interface: 1 x 24-pin ATX Power Connector, 1 x 4-pin ATX 12 V Power Connector, 1 x USB Connectors, can support 2 x USB 3.0, 1 x USB Connectors, can support 2 x USB 2.0, 1 x F_Audio Connector, 1 x F_Panel Connector, 1 x Speaker_Connector, 2 x FAN connectors, 4 x Serial ATA connection port, 1 x 40-pin IDE port.
Integrated Sound: with 6-channel HD Audio codec Onboard, provides front audio interface; provides front stereo mic interface, Integrated LAN: with 10/100 Mbps LAN Onboard. Expansion Slot: 1 x PCI Express 16 x Slot, 1 x PCI Express1 x Slot, Dimension: Micro-ATX architecture (170*190mm)
The LGA1150 socket on Motherboard is compatible with forth and fifth generation Core desktop processors. Best overall performance for Industrial and Business Applications.
All Combos tested before dispatch
3 Year Manufacturer Warranty
